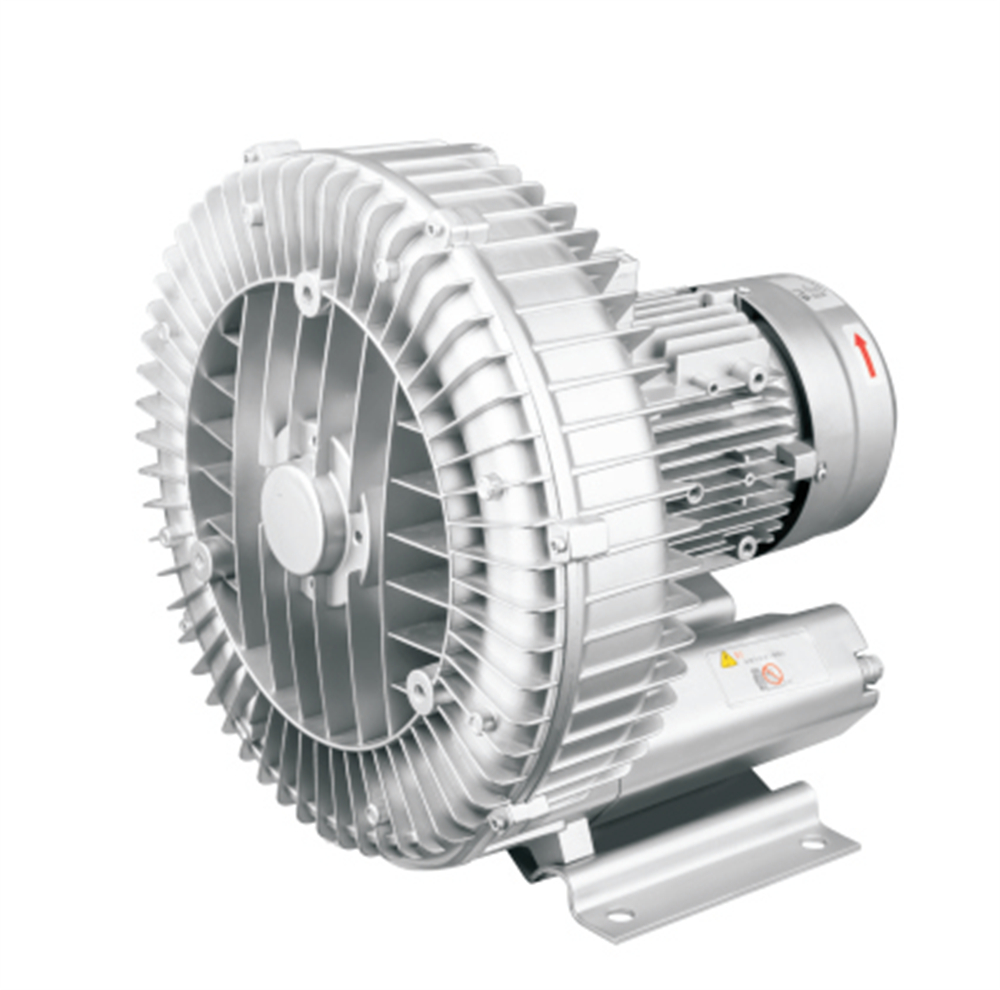

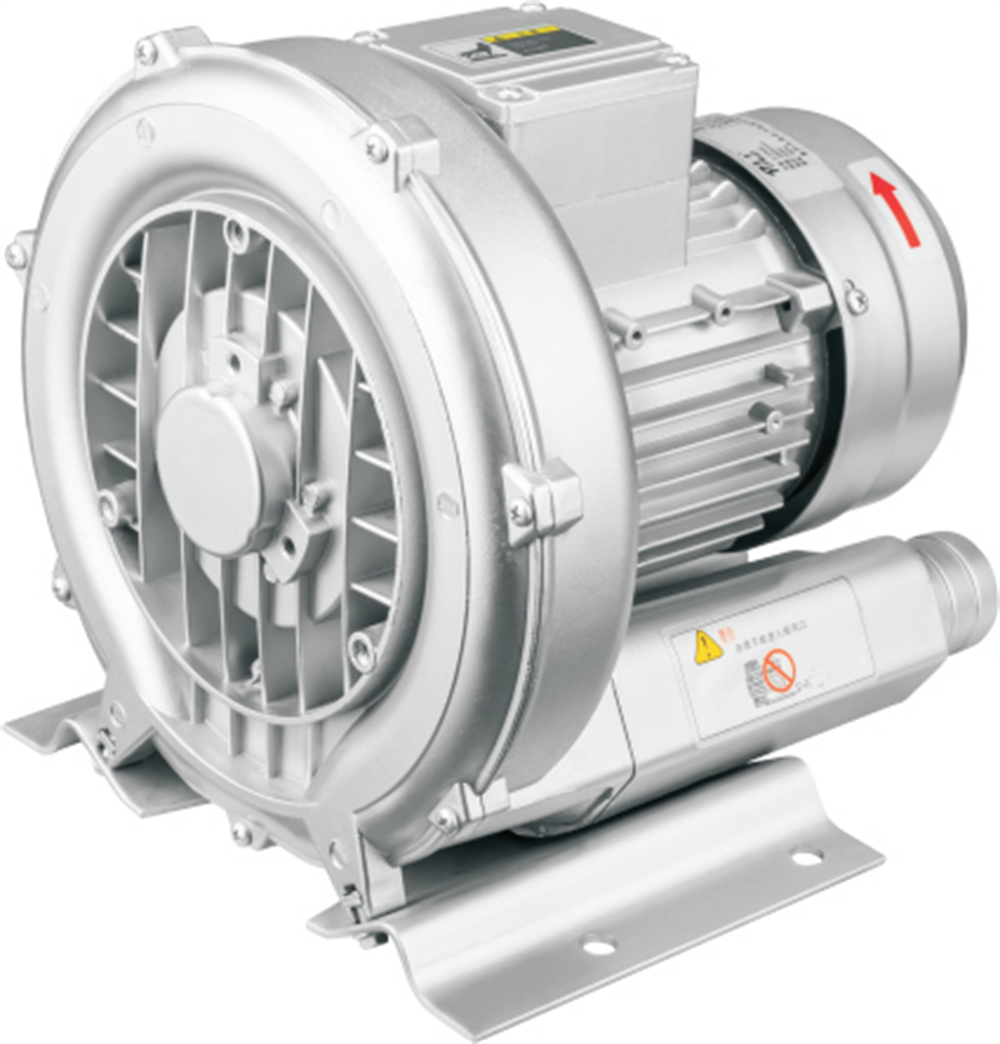

Product Overview
An air pump is a kind of impeller that rotates at a high speed. The air between the blades of the impeller is driven by centrifugal force and moves toward the edge of the impeller, where the air enters the annular cavity of the pump body, and then returns to the impeller. It circulates again from the starting point of the blade in the same way. Because the air is uniformly accelerated, the circulating air produced by the height rotation of the impeller causes the air to pass out in the form of a helix. Leave the air pump with extremely high energy for use.
Scope of use
Widely used in environmental water treatment aeration, electroplating bath mixing, special breeding and oxygenation, light bulb industry, dust removal and ventilation, paper cutting machine, screen printing machine, photoplate making machine, cigarette filter forming machine, injection molding machine, automatic feeding and drying machine, atomization dryer, liquid, powder filling machine, electric welding equipment, film machinery, vacuum packaging, paper transportation, powder transportation, clothing ironing, dry cleaning, food processing, gas transmission, Delivery and collection and so on.
型號/Type | 最大氣壓Max air pressure(kpa) | 最大流量Max flow(m3/h) | 最大真空度 Max vacuum(-kpa) | 額定電壓Rated voltage(V) | 功率 Power(kW) |
HG-120 | 7.5 | 15.2 | 6 | 0.12 | 220 |
HG-180 | 10 | 20 | 7 | 0.18 | 220 |
HG-250 | 13 | 36 | 8 | 0.25 | 220 |
HG-370 | 17 | 70 | 9.8 | 0.37 | 220 |
HG-550 | 19 | 100 | 10 | 0.55 | 220/380 |
HG-750 | 22 | 120 | 12 | 0.75 | 220/380 |
HG-1100 | 27 | 170 | 14 | 1.1 | 220/380 |
HG-1500 | 30 | 180 | 14.8 | 1.5 | 380 |
HG-2200 | 36 | 250 | 16.7 | 2.2 | 380 |
HG-3000 | 38 | 290 | 17.5 | 3 | 380 |
HG-4000 | 39 | 340 | 20 | 4 | 380 |
HG-5500 | 42 | 430 | 26.5 | 5.5 | 380 |
HG-7500 | 45 | 630 | 36.7 | 7.5 | 380 |
